Does NOT work with Intellitec system. Works ONLY with Waiter ECC system.

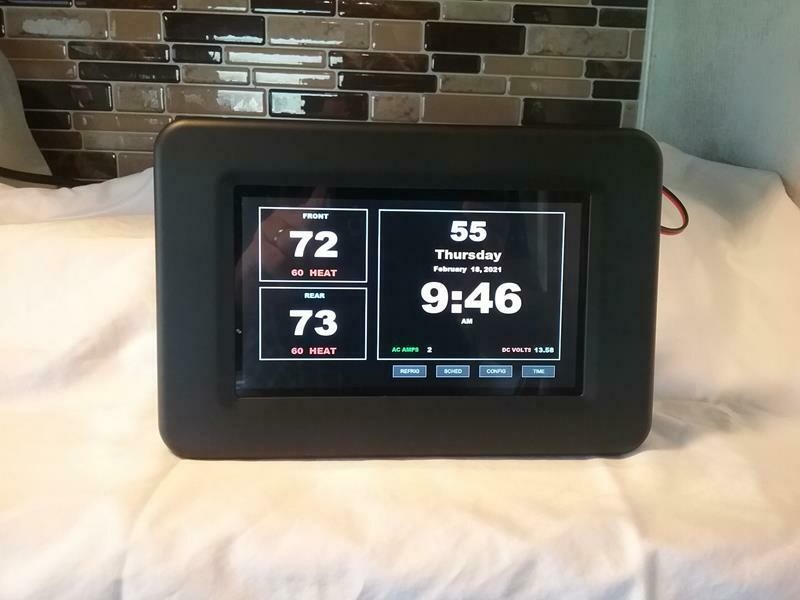

If you'd like to display and control your Waiter ECC from another location, then the Remote display will work for you. You must have already installed the Waiter ECC, AND, the Remote MUST be installed within wifi range of the main Waiter ECC touchscreen.

The display can be mounted flush on a wall, similar to the main touchscreen, It can be mounted on a wall with a removable slide plate that allows the remote touchscreen to be easily removed. It can also sit nicely on a countertop, dashboard, etc. The remote touchscreen can be powered by 12 volts or a 120 volt wall transformer (included).. (5.5×2.1mm plug, center pin is positive)

All the operator screens are the same as the main touchscreen and control the Waiter ECC system exactly the same as the main screen.

There are two types of display enclosures available for the display. 1) The “Official” enclosure is the one used for the main display unit (every Waiter ECC touchscreen comes with the “official” enclosure), and, 2) the VonLinder enclosure. We prefer to use the VonLinder enclosure for the remote display as it comes with special wall mount slide plates that allow the display to be easily mounted to a wall, then removed and set on a counter top.

Remote display kit includes:

• Remote Operator touchscreen assembly
• 12 volt power connector pigtail wire. 5.5 × 2.1mm plug, center pin (+)
• 120 volt to 12 volt DC power supply
• VonLinder wall mount slide plate
• Various VonLider enclosure accessories
